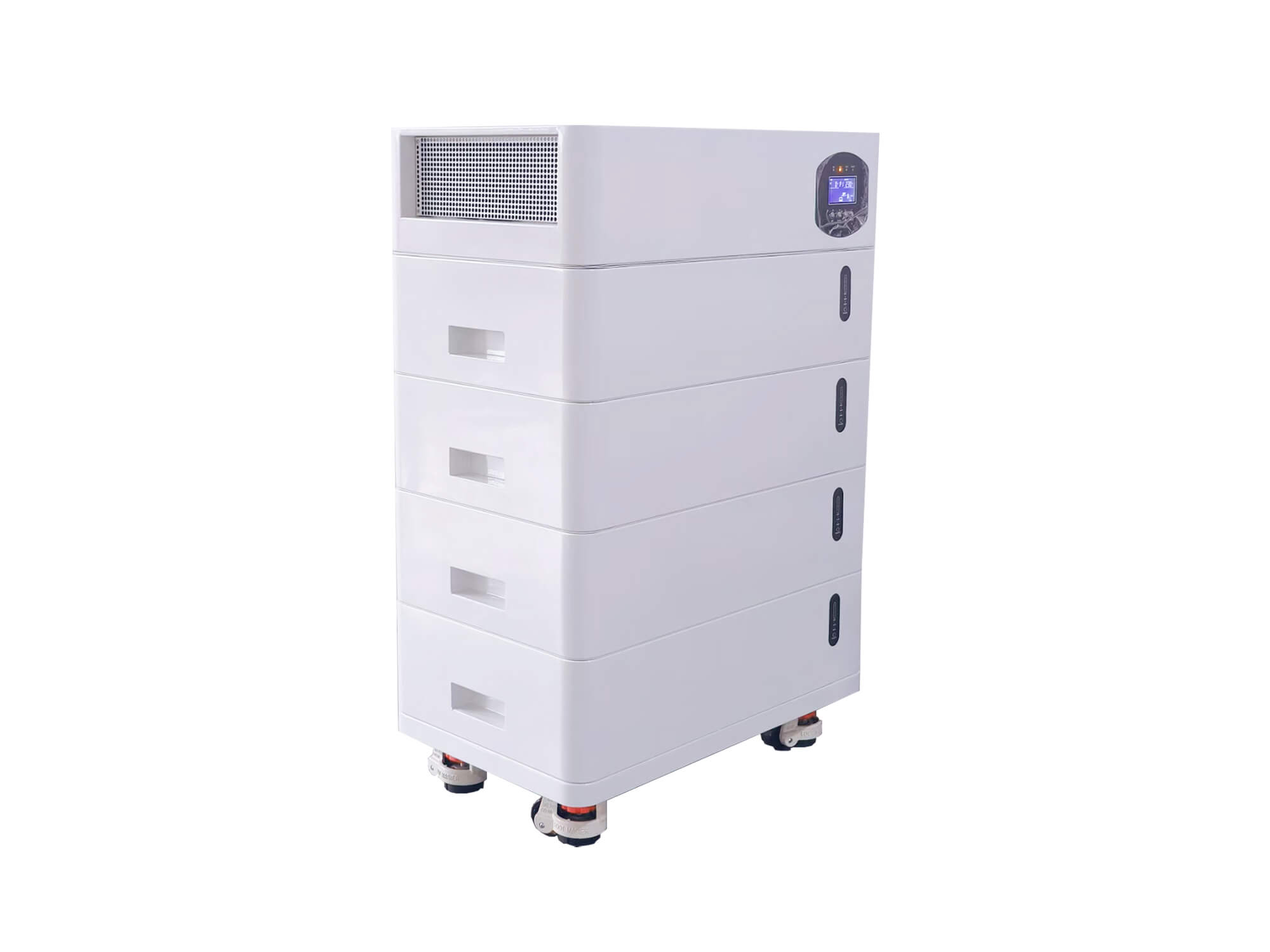

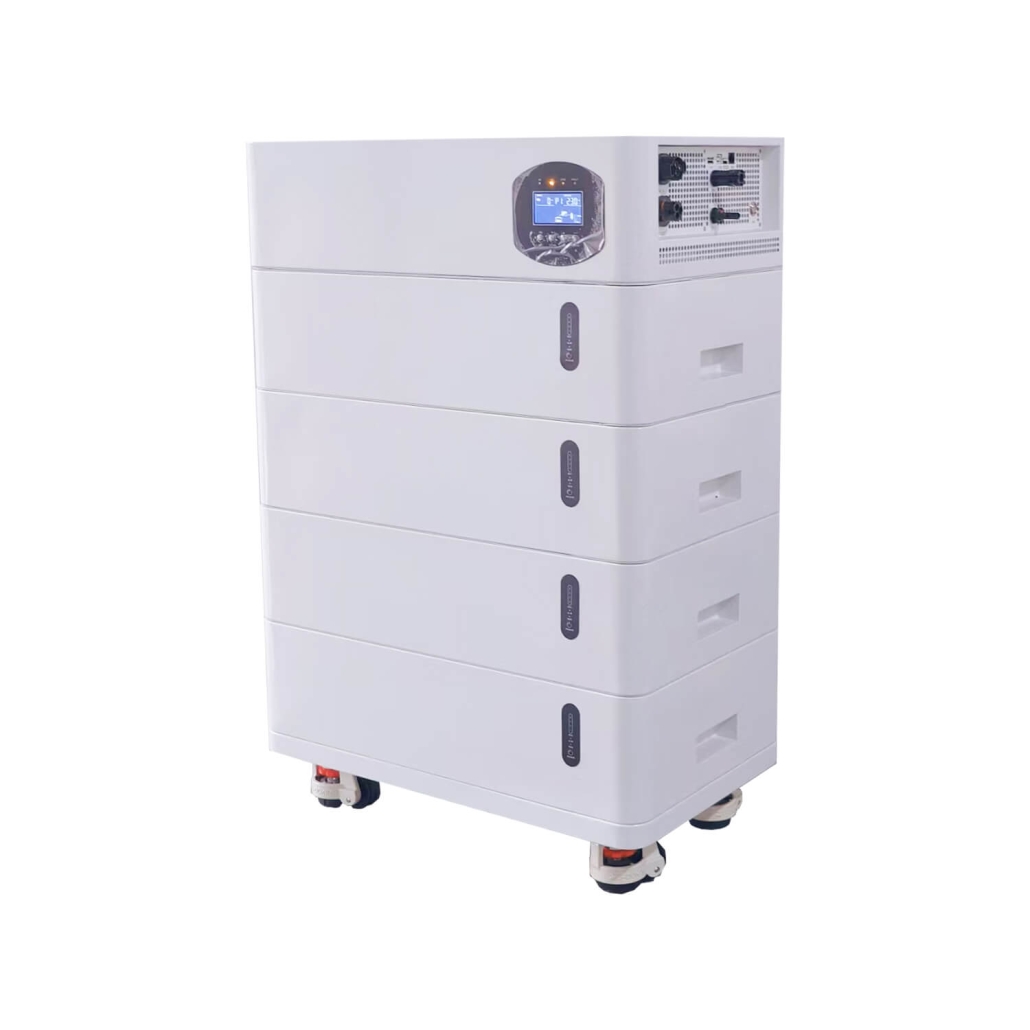

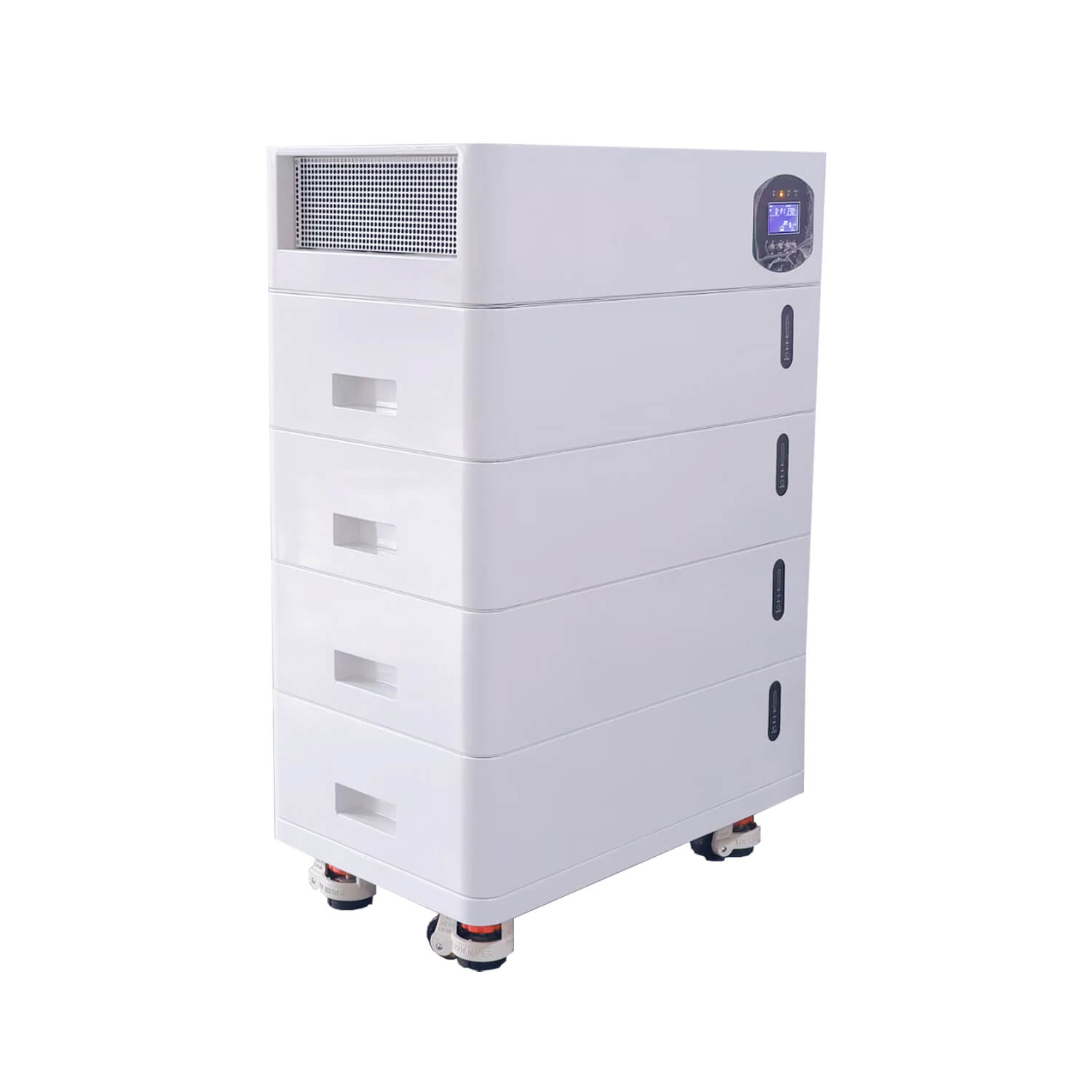

Polinovel ONE Series
Polinovel ONE Series Polinovel ONE Series

48V LiFePO4 All In One Home Battery with Inverter

  • Model: ONE10/ONE15/ONE20/ONE30
  • Built-in 5KW solar inverter
  • 15 protections for added safety
  • Modular design for easy power expansion
  • Custom solutions to meet different power needs
Inquiry Now

Polinovel ONE Series is an all-in-one energy storage solution that integrates 48V lithium battery modules and a 5KW inverter, available in 10kWh, 15kWh, 20kWh, 30kWh, etc., and can be easily expanded with a modular design. It provides a reliable and uninterrupted power supply to ensure your home stays powered up even during blackouts. Whether you need it for emergency backup power or to offset expensive peak electricity bills, the ONE Series is an excellent energy storage solution.

Polinovel-ONE-Series

This ONE Series energy storage solution incorporates a 5KW solar inverter and 48V lithium battery packs, reducing the matching process and installation time, which is a one-stop solution for providing an efficient and reliable source of energy for homes.

The modular and stackable design allows it to be easily scaled to meet the specific energy needs of customers. It is an ideal choice for those who looking for a reliable and flexible energy storage solution.

Home Battery
Battery
Model ONE10 ONE15 ONE20 ONE30
Nominal Voltage 51.2V
Nominal Capacity 200Ah 300Ah 400Ah 600Ah
Energy 10.24KWh 15.36KWh 20.48KWh 30.72KWh
Charge Voltage 58V
Discharge Cut-off Voltage 42V
Charge Current 50A
Max. Charge Current 100A
Discharge Current 100A
Max. Discharge Current 150A
Max. Peak Current 300A
Communication RS485/CAN
Inverter
Power 5KW
Output Voltage 230VAC
Frequency 50Hz
Input Power (PV) 5KW
Input Voltage Range (PV) 120~430VDC
Communication RS485/CAN/WiFi
General Parameters
Case Material Metal
Dimension 585*360*610mm / 23*14.2*24 in 585*360*760mm / 23*14.2*30 in 585*360*915mm / 23*14.2*36 in 585*360*1225mm / 23*14.2*48.2 in
Weight 105kg / 231.5lbs 148kg / 326.3lbs 191kg / 421.1lbs 234kg / 516lbs
Charge Temperature 0~50ºC
Discharge Temperature -15~60ºC

Technical Parameters

Battery
Model ONE10 ONE15 ONE20 ONE30
Nominal Voltage 51.2V
Nominal Capacity 200Ah 300Ah 400Ah 600Ah
Energy 10.24KWh 15.36KWh 20.48KWh 30.72KWh
Charge Voltage 58V
Discharge Cut-off Voltage 42V
Charge Current 50A
Max. Charge Current 100A
Discharge Current 100A
Max. Discharge Current 150A
Max. Peak Current 300A
Communication RS485/CAN
Inverter
Power 5KW
Output Voltage 230VAC
Frequency 50Hz
Input Power (PV) 5KW
Input Voltage Range (PV) 120~430VDC
Communication RS485/CAN/WiFi
General Parameters
Case Material Metal
Dimension 585*360*610mm / 23*14.2*24 in 585*360*760mm / 23*14.2*30 in 585*360*915mm / 23*14.2*36 in 585*360*1225mm / 23*14.2*48.2 in
Weight 105kg / 231.5lbs 148kg / 326.3lbs 191kg / 421.1lbs 234kg / 516lbs
Charge Temperature 0~50ºC
Discharge Temperature -15~60ºC
