83.2V 560Ah Lithium Forklift Battery

LIGHT EV
LITHIUM BATTERY
Leap Forward Lithium Technology Battery

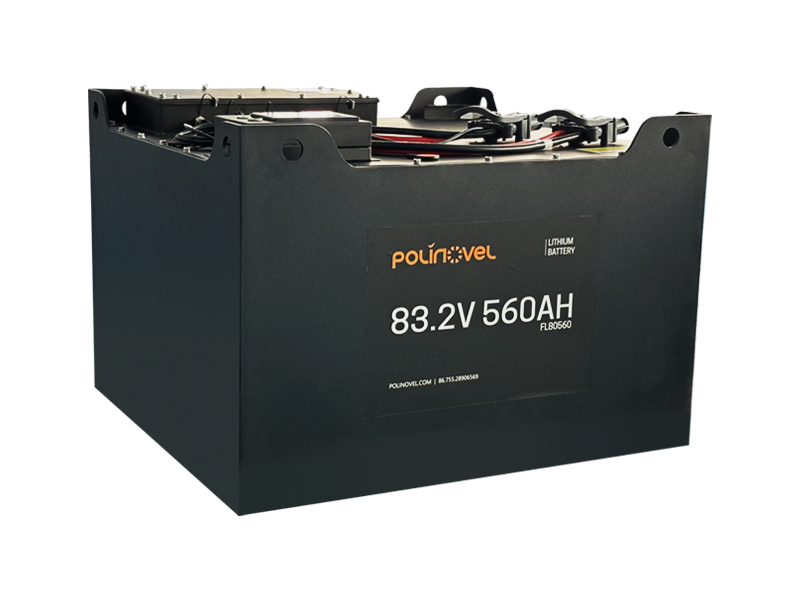

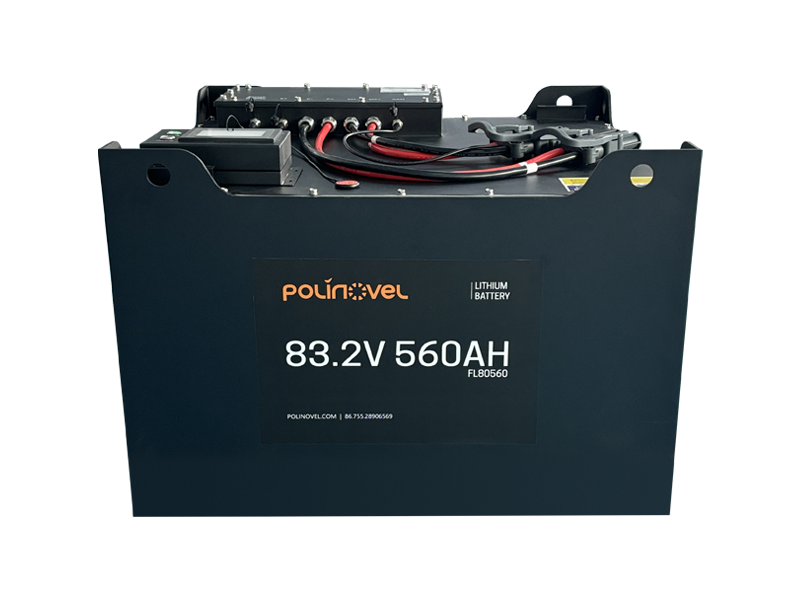

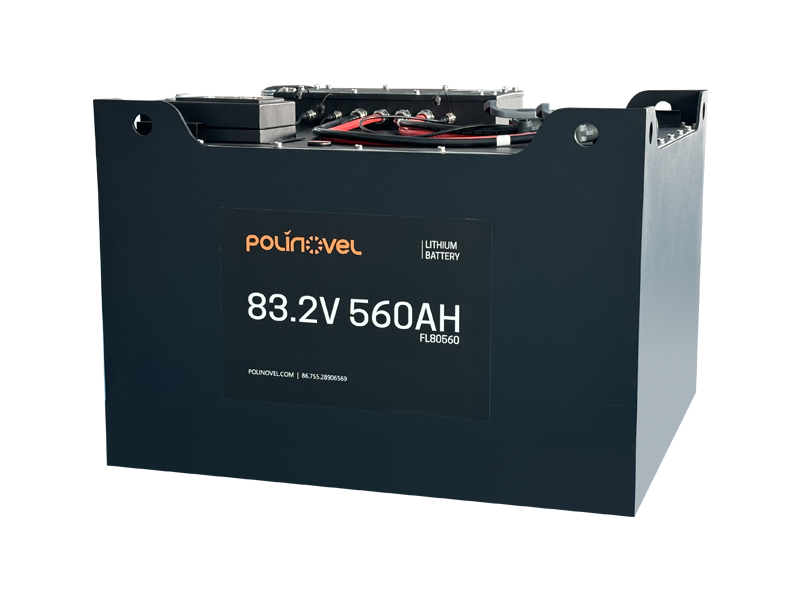

83.2V 560Ah Lithium Forklift Battery

Model: FL80560
LiFePO4 battery delivers high power and long runtime
Supports high discharge for efficient lifting and driving
Intelligent BMS ensures safe, reliable operation
Compact design allows easy installation in large forklifts

Polinovel 83.2V 560Ah lithium battery uses premium LFP cells to deliver exceptional power, extended runtime, and maintenance-free operation. Designed for high-load and high-frequency applications, it is ideal for forklifts, stackers, reach trucks, lift trucks, order pickers, tow motors, pallet jacks, AGVs and more.

Polinovel lithium forklift battery features a smart BMS with multiple safety functions, including overcharge, over-discharge, overcurrent, overheating, and short-circuit protection, ensuring safe and reliable operation even under heavy-duty conditions. The advanced cell-balancing algorithm keeps each cell voltage consistent, optimizing performance and extending battery lifespan.

Polinovel lithium traction batteries deliver powerful, safe, and reliable uphill performance for a forklift with a load of 3.5 tons. They are the ideal choice for demanding material handling tasks.

Technical Parameters

Model	FL80560
Nominal Voltage	83.2V
Nominal Capacity	560Ah
Energy	46592Wh
Charge Voltage	94.9V
Discharge Cut-off Voltage	68.9V
Charge Current	≤250A
Constant Discharge Current	200A
Peak Discharge Current	600A @20s
Dimension	830767570 mm (32.730.222.4 in)
Weight	420kg / 926lbs (without counterweight)
Cycle Life @DOD100%	≥2000 cycles
Charge Temperature	0~45ºC
Discharge Temperature	-20~60ºC
Storage Temperature	10~45ºC
